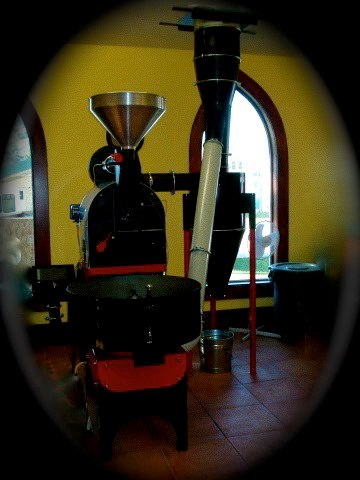

15 KG Roaster Information
- No shared motors or functions allows for roasting and cooling at the same time
- Bean and environment probes
- Mild Steel construction provides even energy transference and energy efficiency
- Mild Steel drum with mild steel blades allows for optimum bean movement within the drum
- Ribbon burner allows for even heat to the drum without any hot spots due to burner placement
- All motors and gearboxes are oversized so that you don’t need to worry about overloading the motor.
- Sub 5 minute cooling time
- Efficient cyclone separation of chaff from the smoke is extracted by drum
- Airflow easily adjusted by touch screen for more conduction/convection heat during the roast cycle according to your preference.
- Load Capacity: 33 pounds per roast green
- Roast time: 13-18 minutes dependent on darkness of roast and drum speed/airflow
- Exhaust dimensions: 7.2”
- Length: 62”
- Width: 34”
- Height: 76”
- Roaster Fan 1/2hp 240v 3 phase
- Roaster Motor 1/2HP 240v 3 phase through gearbox
- Stir Flex 1/3hp through gearbox
- Cooling 1/2hp 3 phase
- Gas BTU’s: 105,000
- Gas line: 8” water column
- Amps: 4 wire 30 amp 3 phase with ground wire
Optional Upgrade:
- Oversized Cool Tray to allow blending without additional equipment. Can hold up to 66 pounds depending on bean density.
